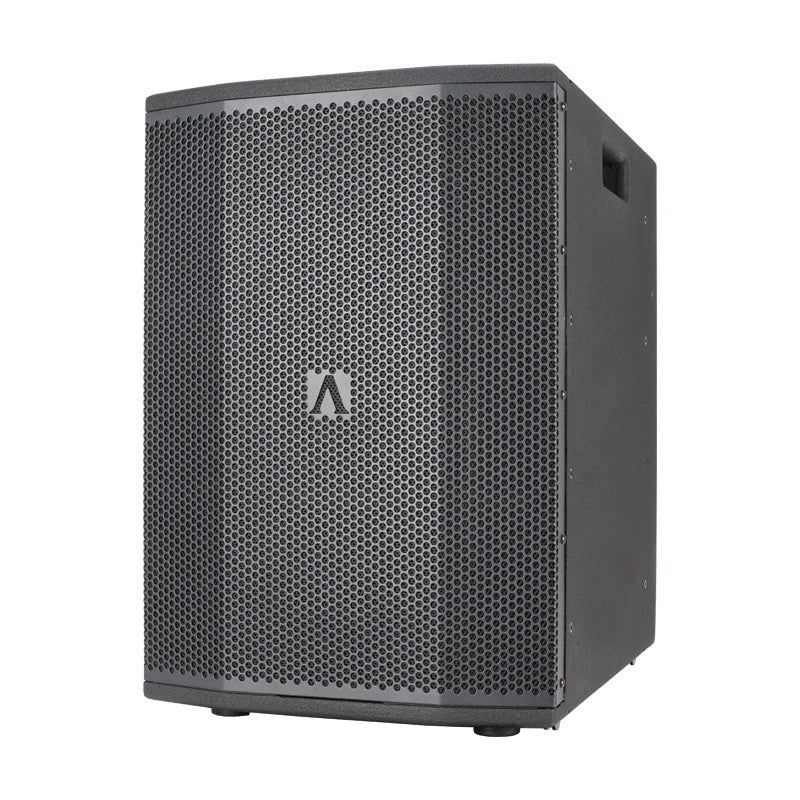

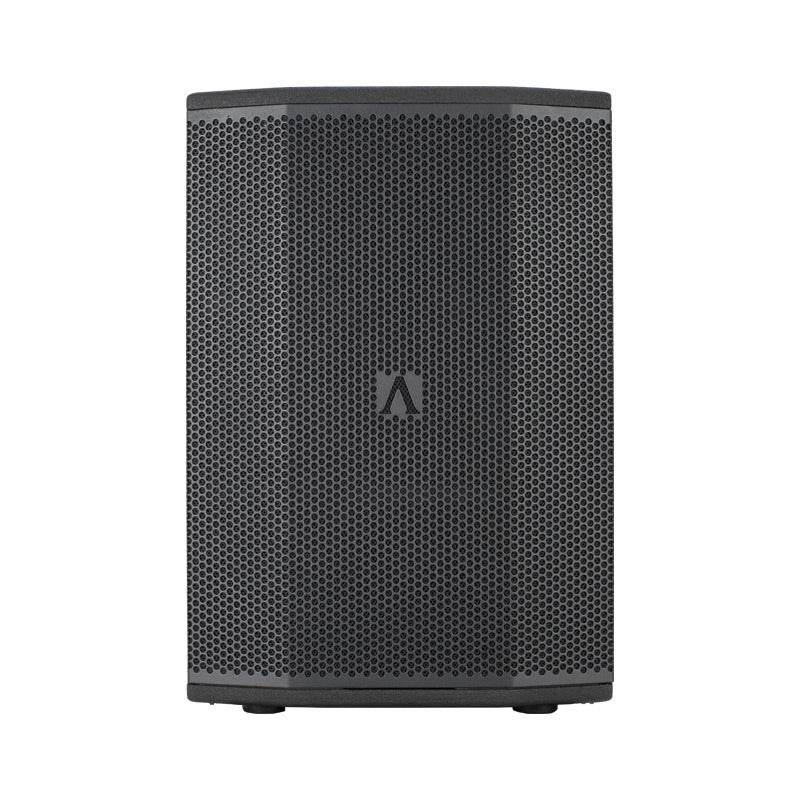

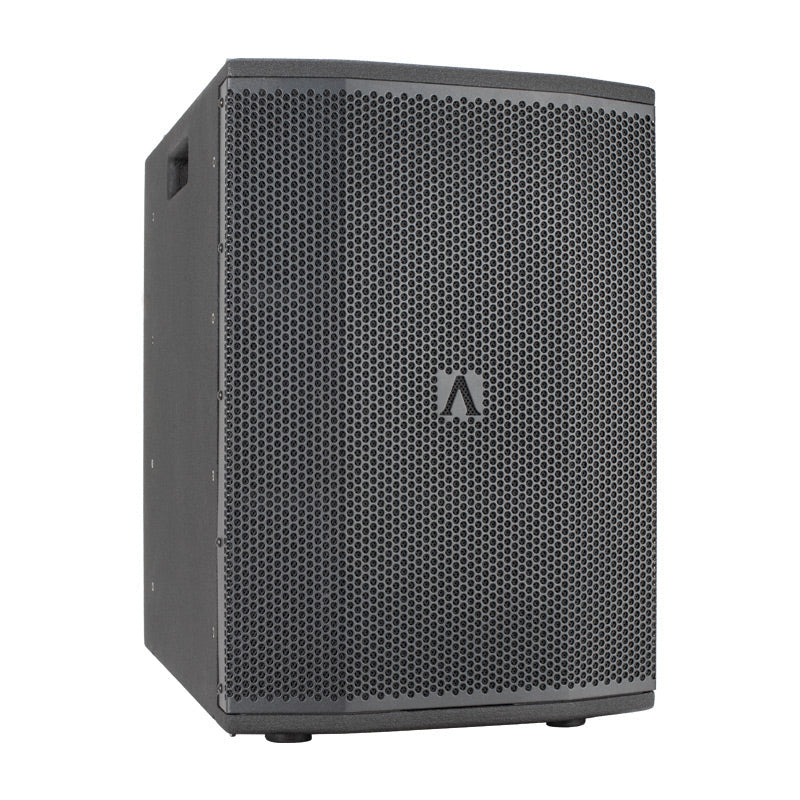

Imperio Sub

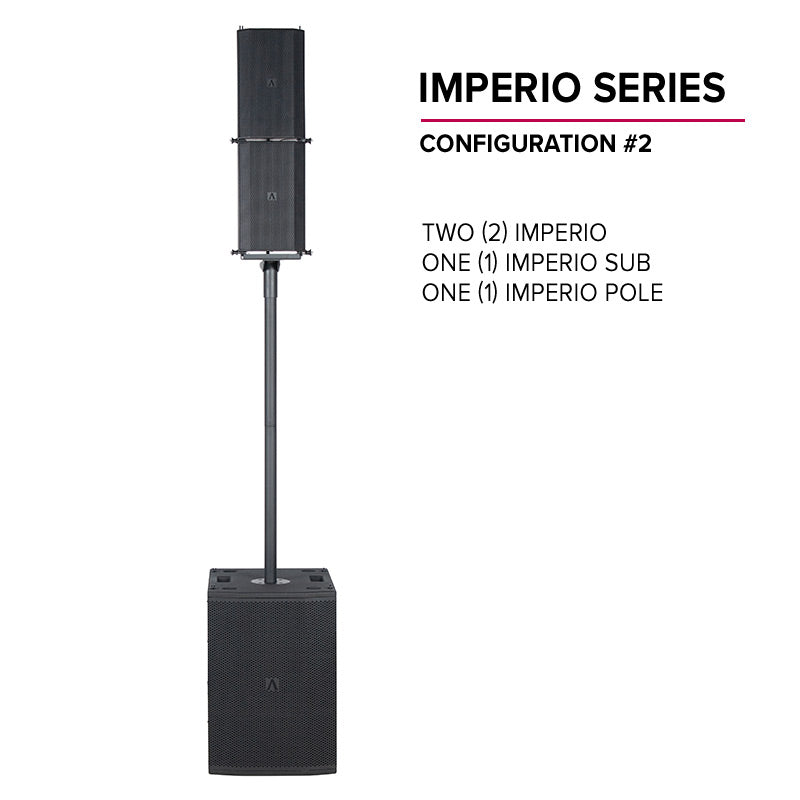

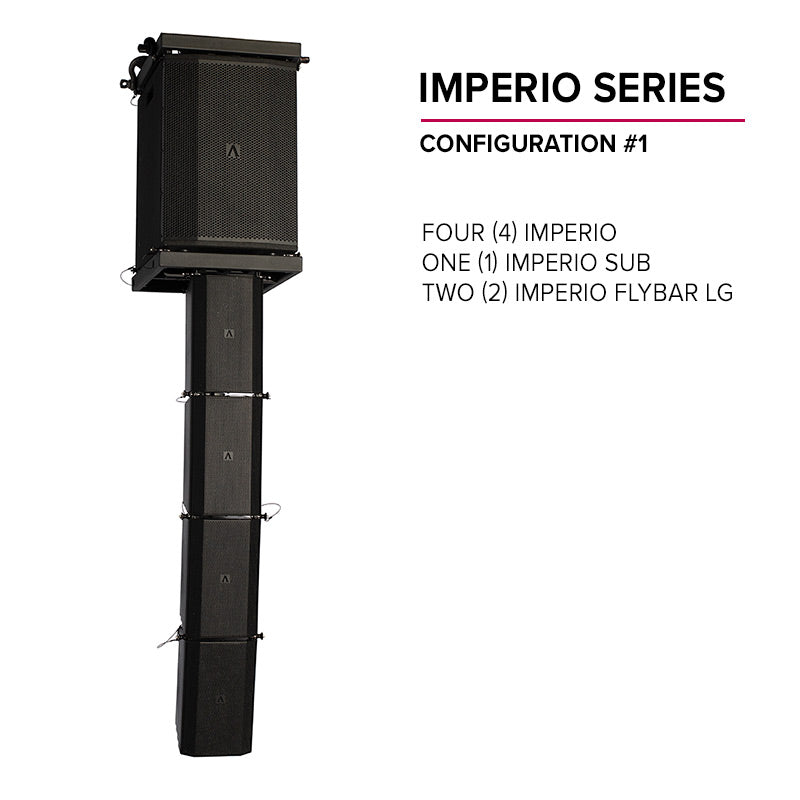

Avante Audio’s Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Imperio accessories include: Imperio Flybar LG (IMP265), Imperio Flybar Small (IMP496), Imperio Pole (IMP194) and Linkpin 2 (IMP340).

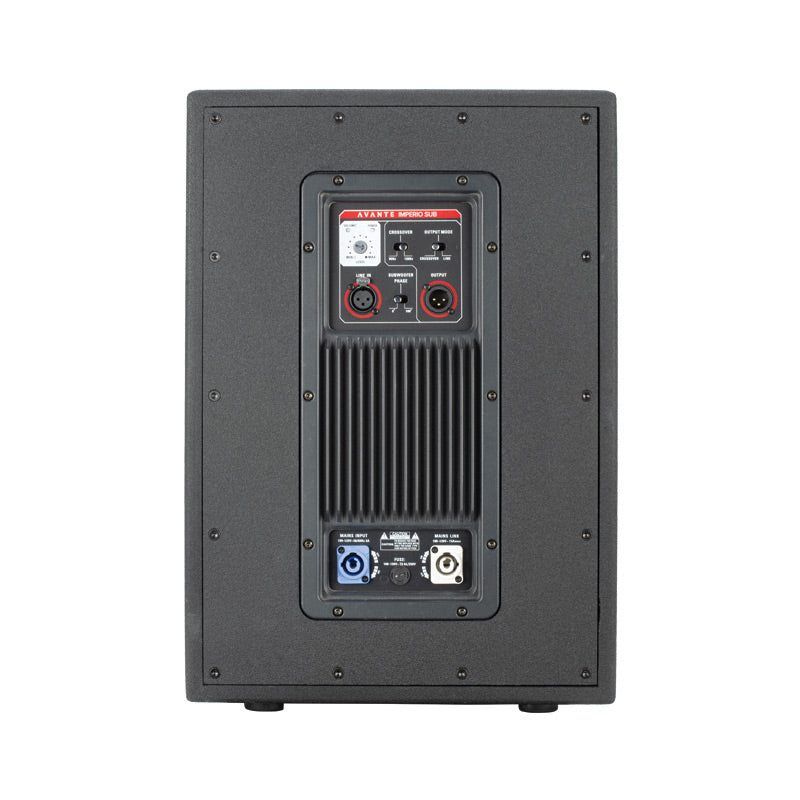

AMPLIFIER:
• 400 watts RMS, Class D Power Amp, 800 watts Peak Power
• 100-120V / 220-240V ~ 50/60Hz (country specific)
• LED Power / Signal / Clip Indicator
• Input: 1x 3pin XLR and Locking Power Connector
• Output: 1x 3pin XLR and Locking Power Connector
• Phase Switchable (0 / 180)
• Internal Selectable X-Over (90Hz or 120Hz)
• Volume Control Dial
DRIVER:
• 1x 10” Woofer w/2.5” Voice Coil
• 123dB (at max output)
• Plywood Cabinet, black finish
• 6th Order Bandpass Design
• M20 Screw Pole Mount
• 1.2mm Steel Grill
DIMENSIONS / WEIGHT
• Dimensions (HxWxD): 20.7” x 13.8” x 18.3” / 525mmx350mmx465mm
• Weight: 49.6 / 22.5kg.
APPROVALS:
• ETL Approved
- IMPERIO Frequency Chart Configuration 1
- IMPERIO Frequency Chart Configuration 2
- IMPERIO Frequency Chart Configuration 3
- IMPERIO Frequency Chart Configuration 4
- IMPERIO Frequency Chart Configuration 5
- IMPERIO Frequency Chart Configuration 6
- IMPERIO Frequency Chart Configuration 7
- IMPERIO Frequency Chart Configuration 8
- Imperio User Manual
