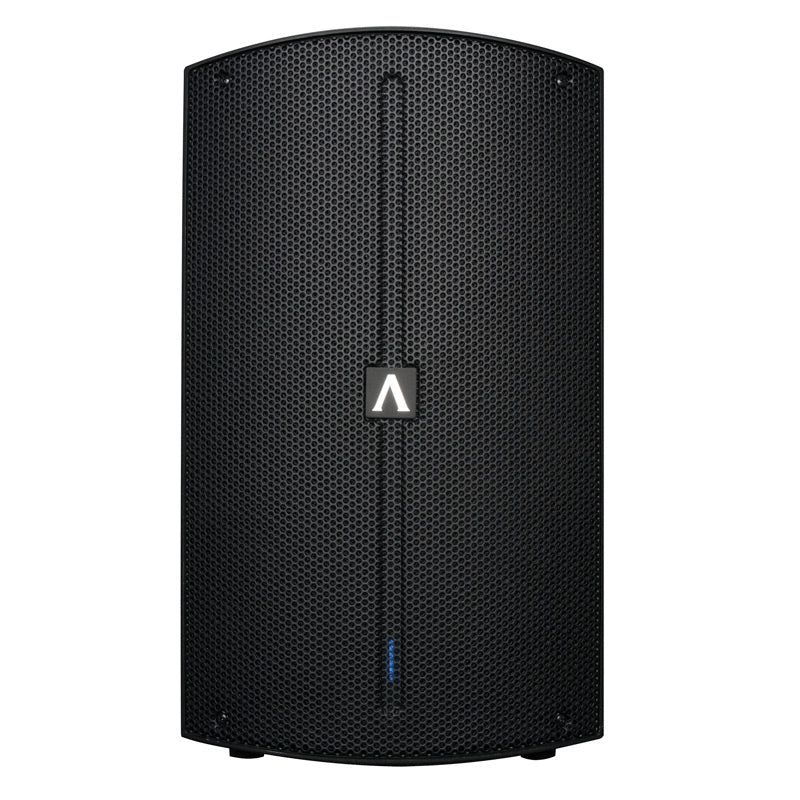

Avante Audio A10
• Amp Power#58; 1000W Peak; 250W Class D (LF) + 50W Class AB (HF) RMS

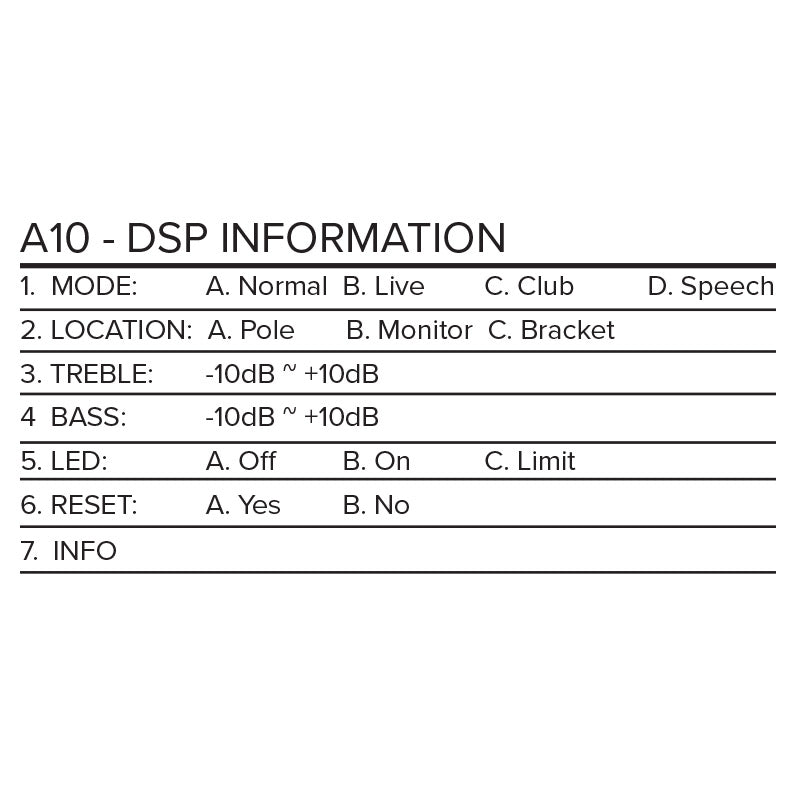

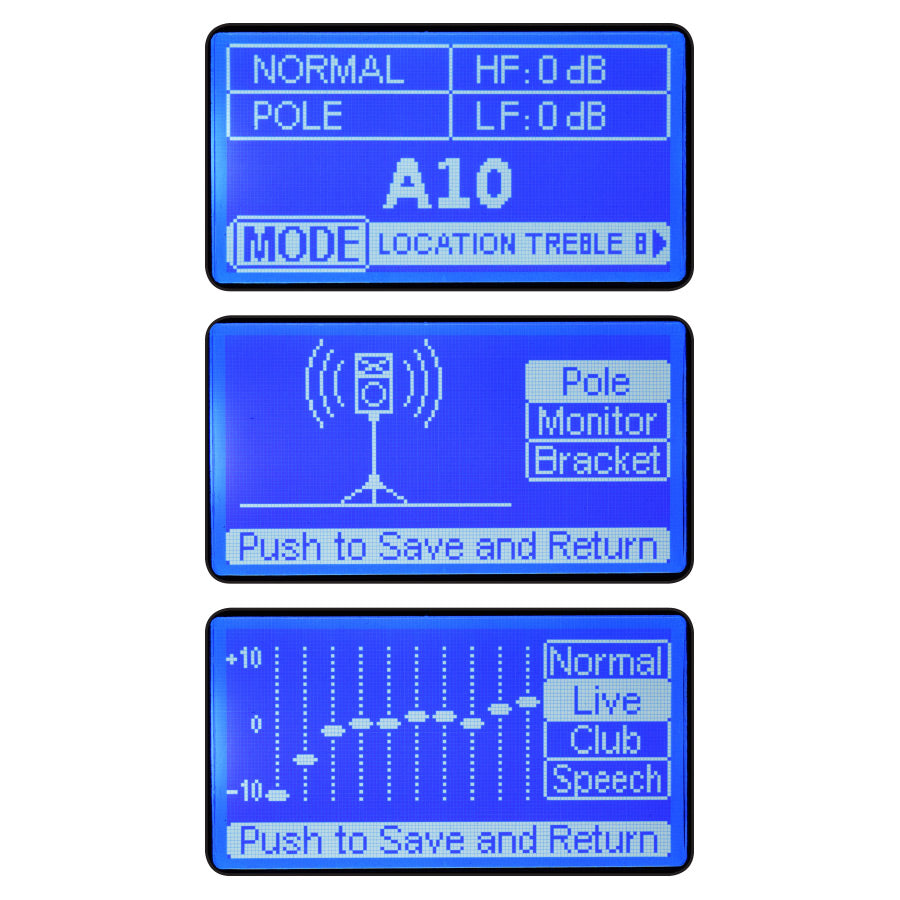

• Built-in Digital Signal Processing (DSP) with LCD screen, EQ amp; multiple presets
• Frequency Range#58; 70hz-20kHz
• Output (Peak SPL @ 1m)#58; 121dB
• Nominal Coverage#58; 90˚ x 60˚
• Drivers#58; 10-inch woofer with 2-inch voice coil + 1-inch HF Compression Driver

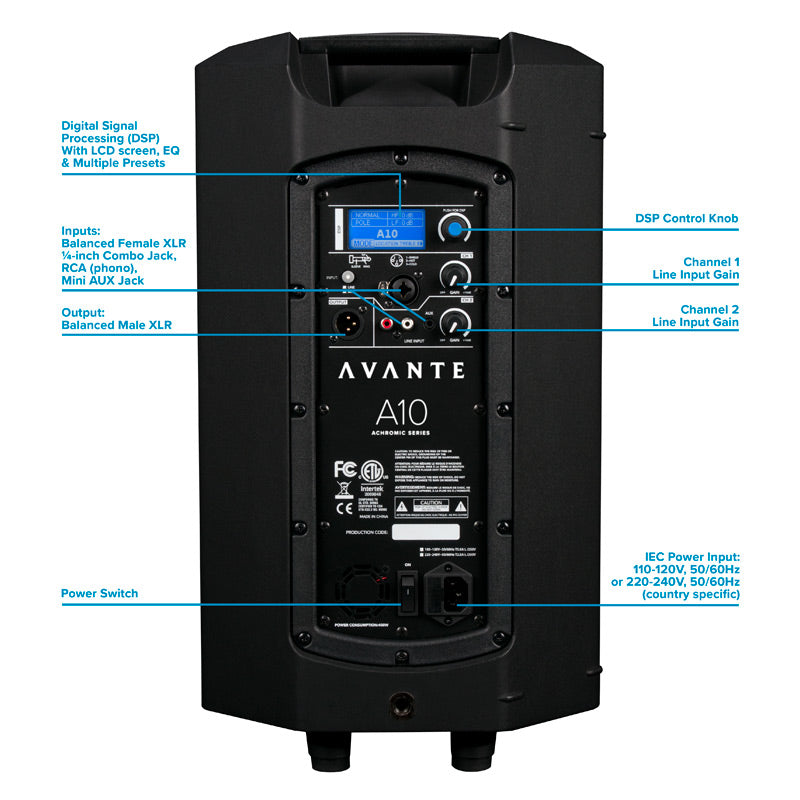

• Inputs#58; Balanced Female XLR ¼-inch combo jack, 2x RCA (phono)
• Output#58; Balanced Male XLR
• Enclosures#58; H-PP Molded
• Grill#58; 1.2mm Steel
• Handles#58; 1 on top
• Fly Points#58; 2 on top / 1 on back

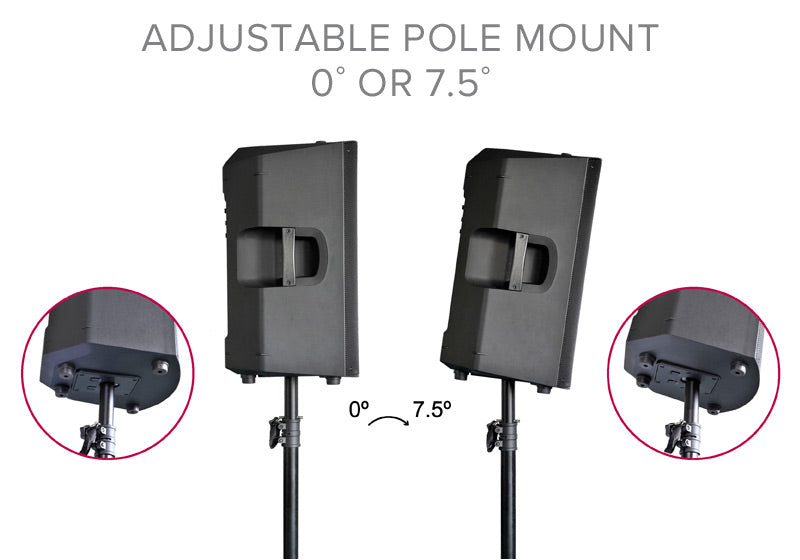

• Pole Mounting#58; Dual position 0-degrees or 7.5-degrees
• Power Input#58; 120V/60Hz or 240V/50Hz (country specific)
• Power Consumption#58; 400W
• Dimensions#58; 20.9”x12.2”x11.8” / 530x310x299mm
• Weight#58; 25 lbs. / 11.3 kg.
Specifications
• Amp Power: 1000W Peak; 250W Class D (LF) + 50W Class AB (HF) RMS
• Built-in Digital Signal Processing (DSP) with LCD screen, EQ multiple presets
• Frequency Range: 70hz-20kHz
• Output (Peak SPL @ 1m): 121dB
• Nominal Coverage: 90˚ x 60˚
• Drivers: 10-inch woofer with 2-inch voice coil + 1-inch HF Compression Driver
• Inputs: Balanced Female XLR ¼-inch combo jack, 2x RCA (phono)
• Output: Balanced Male XLR
• Enclosures: H-PP Molded
• Grill: 1.2mm Steel
• Handles: 1 on top
• Fly Points: 2 on top / 1 on back
• Pole Mounting: Dual position 0-degrees or 7.5-degrees
• Power Input: 120V/60Hz, 240V/50Hz (country specific)
• Power Consumption: 400W
• Dimensions: 20.9”x12.2”x11.8” / 530x310x299mm
• Weight: 25 lbs. / 11.3 kg.
Downloads
| Filename | Document type | File type |
|---|---|---|
| Avante Achromic Speaker Frequency Charts | Frequency Charts | |
| Avante Achromic Series Cut Sheets | Cut Sheet | |
| Avante Achromic Speaker Technical Specifications | Specification Sheet | |
| Avante Achromic Speaker Dimensions | Dimensional Drawings | |
| ACHROMIC Series Speakers User Manual | User Manual |
