AACXLR-L-10
Connect compatible powered speakers with greater placement flexibility using the Accu-Cable AACXLR-L-10. This 10 ft / 3 m cable combines balanced 3-pin XLR audio and locking power connections into one flexible assembly for cleaner stages, faster setups, and more organized installations.
AACXLR-L-10
Sale price$84.99
Regular price$117.95
AACXLR-L-10

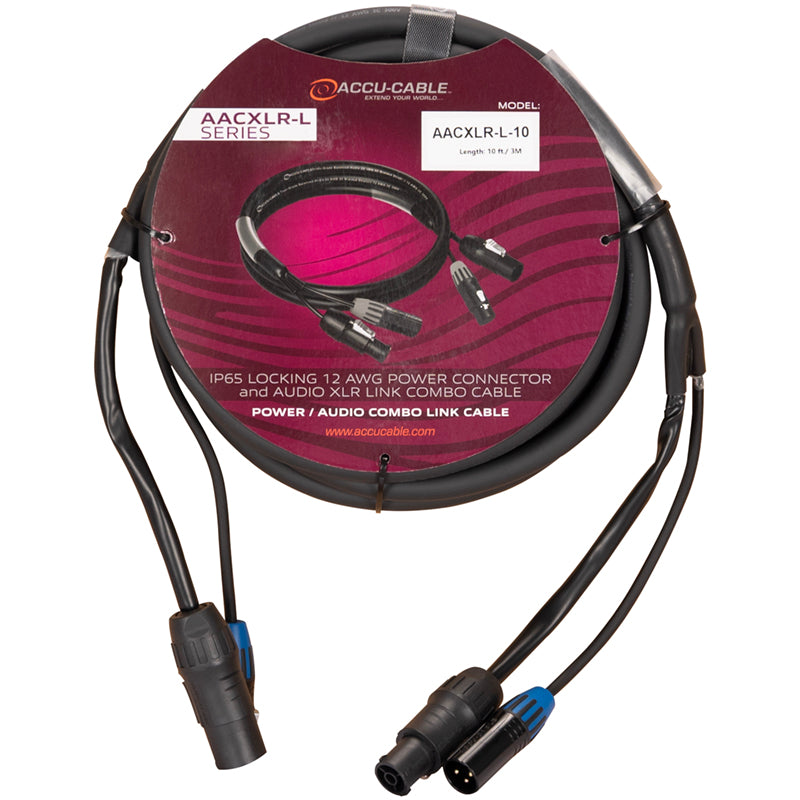

The Accu-Cable AACXLR-L-10 Power/Audio Combo Link Cable provides the additional reach needed to link compatible powered speakers across stages, platforms, and permanent audio installations. Its 10 ft / 3 m length combines balanced audio and power connections into one streamlined cable, reducing clutter and simplifying system setup.

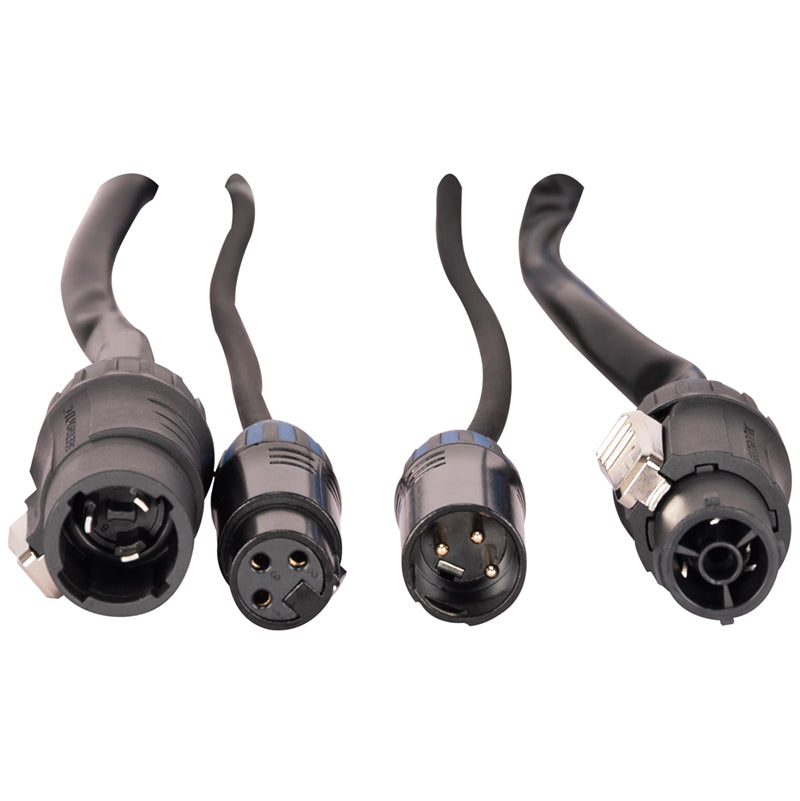

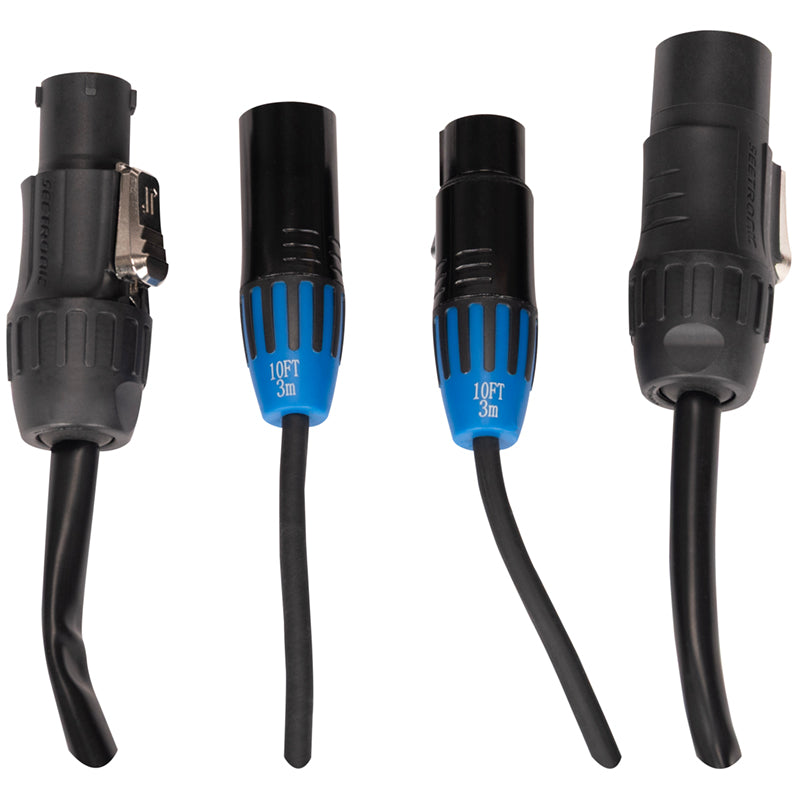

The XLR-M to XLR-F connection carries balanced audio from the output of one powered speaker to the input of the next. At the same time, locking IP-M to IP-F connectors link power between compatible equipment. This integrated design helps production professionals, installers, and venue operators reduce the number of individual cables required for each speaker connection.
Constructed with two-conductor 20 AWG twisted-pair audio wiring, a braided shield, three-conductor 12 AWG power wiring, and a flexible 12 mm PVC jacket, the AACXLR-L-10 is designed for professional audio production, touring, corporate events, churches, and entertainment venue installations.
Specifications
Key Features:
- Combines balanced audio and locking power connections
- Designed for linking compatible powered speakers
- Reduces the number of cables required for each connection
- 10 ft / 3 m length supports wider speaker spacing
- Helps create cleaner stages and permanent installations
- Simplifies equipment setup and teardown
- Heavy-duty 12 AWG power conductors
- Shielded twisted-pair audio construction
- Flexible PVC jacket for convenient cable routing
- Suitable for portable production and fixed installations
Specifications:
- Model: AACXLR-L-10
- Cable length: 10 ft / 3 m
- Audio connector A: 3-pin XLR male
- Audio connector B: 3-pin XLR female
- Audio cable: Two-conductor 20 AWG twisted pair
- Audio shielding: Braided shield
- Power connector A: Locking IP male
- Power connector B: Locking IP female
- Power cable: Three-conductor 12 AWG
- Outer jacket: Flexible PVC
- Cable diameter: 12 mm
Recommended Applications:
- Powered speaker systems
- Concert tours
- Live production
- Corporate audiovisual events
- Houses of worship
- Theaters and performing arts centers
- Nightclubs, bars, and lounges
- Entertainment venue installations
- Professional and commercial audio installations
Specifications are subject to change without notice.
