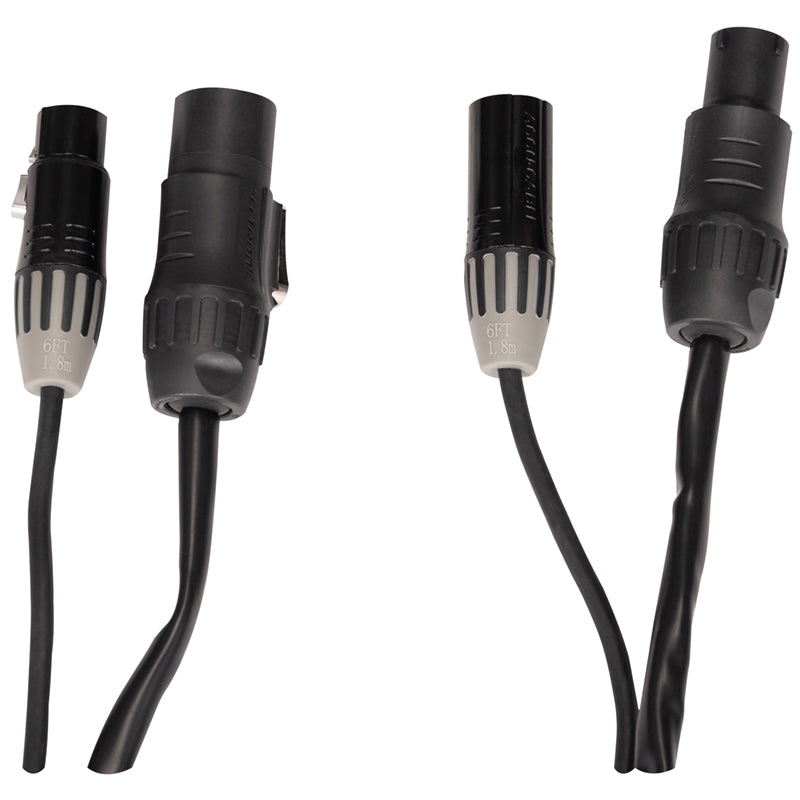

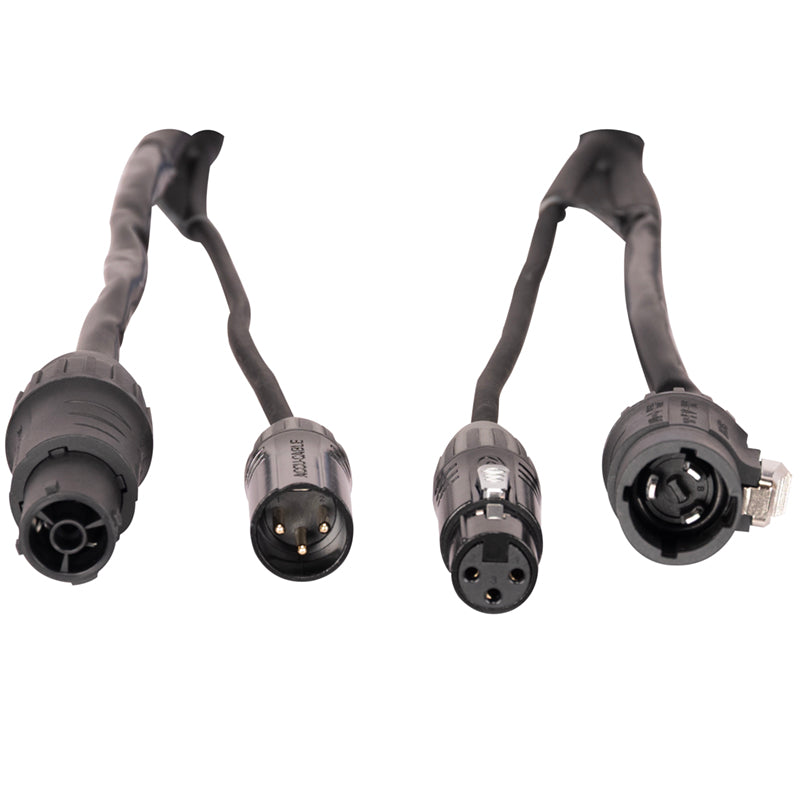

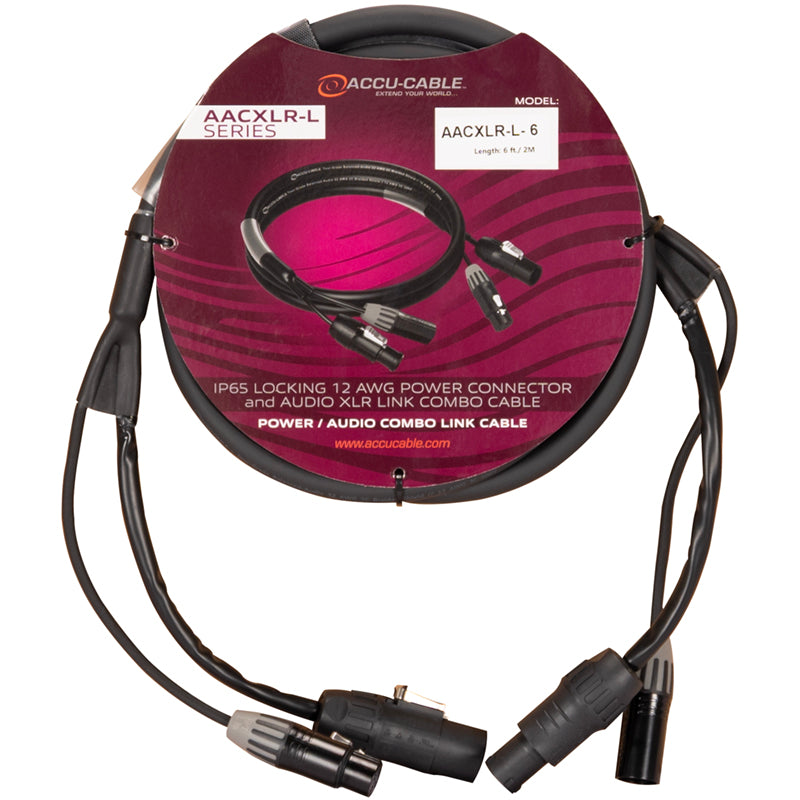

AACXLR-L-6
AACXLR-L-6
This practical combination allows audio and power to be linked from one compatible speaker or professional audio component to the next without running two separate cables. The 6 ft / 2 m length provides useful flexibility for speakers mounted on stands, arranged across small stages, or installed within entertainment venues, churches, and corporate spaces.
The audio section features two-conductor 20 AWG twisted-pair wiring with a braided shield, while the power section uses heavy-duty three-conductor 12 AWG wiring. A flexible 12 mm PVC outer jacket makes the cable easy to route while maintaining a clean and professional appearance.
Specifications
- Carries balanced audio and power through one cable assembly
- Connects compatible powered speakers and audio equipment
- Reduces separate cable runs and stage clutter
- Helps speed up setup and teardown
- 6 ft / 2 m length offers flexible speaker placement
- Locking power connectors help prevent accidental disconnection
- Flexible construction for portable production and installation use
- Creates a clean, organized, professional appearance
Specifications:
- Cable length: 6 ft / 2 m
- Audio connector A: 3-pin XLR male
- Audio connector B: 3-pin XLR female
- Audio cable: Two-conductor 20 AWG twisted pair
- Audio shielding: Braided shield
- Power connector A: Locking IP male
- Power connector B: Locking IP female
- Power cable: Three-conductor 12 AWG
- Outer jacket: Flexible PVC
- Cable diameter: 12 mm
Recommended Applications:
- Powered speakers on stands
- Portable PA systems
- Concert and touring production
- Corporate functions
- Houses of worship
- Nightclubs and lounges
- Theaters and performance spaces
- Entertainment venue installations
- Professional audio installations
Specifications are subject to change without notice.
