Imperio Pro IMP205
440W RMS,Class D Power Amplifier with dual 5.0" Neodymium Low-Mid woofers and six HF drivers. Part of the Imperio Pro Series. Main power cord not included.
Imperio Pro IMP205
Sale price$0.00
Imperio Pro IMP205
Avante Audio Imperio Pro IMP205

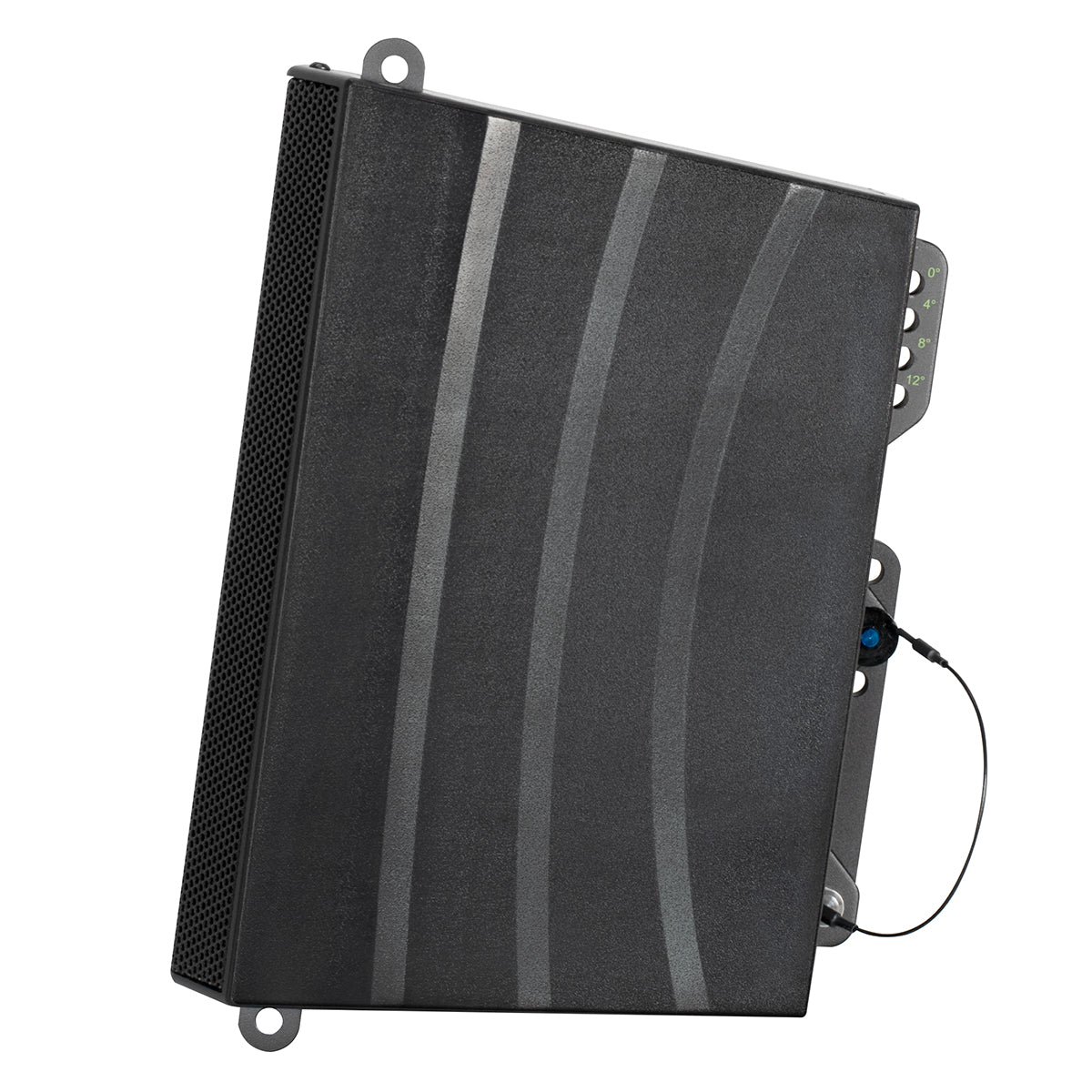

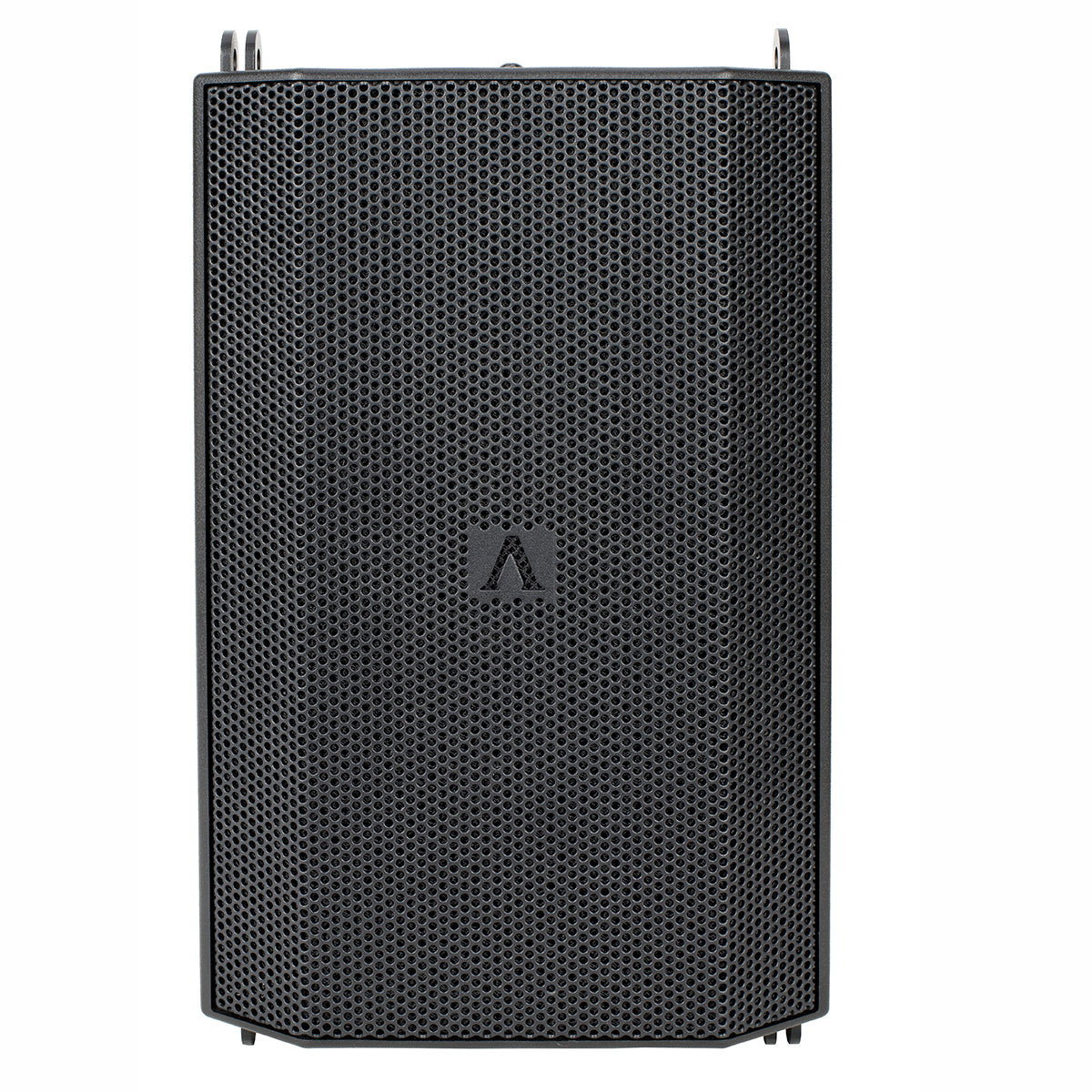

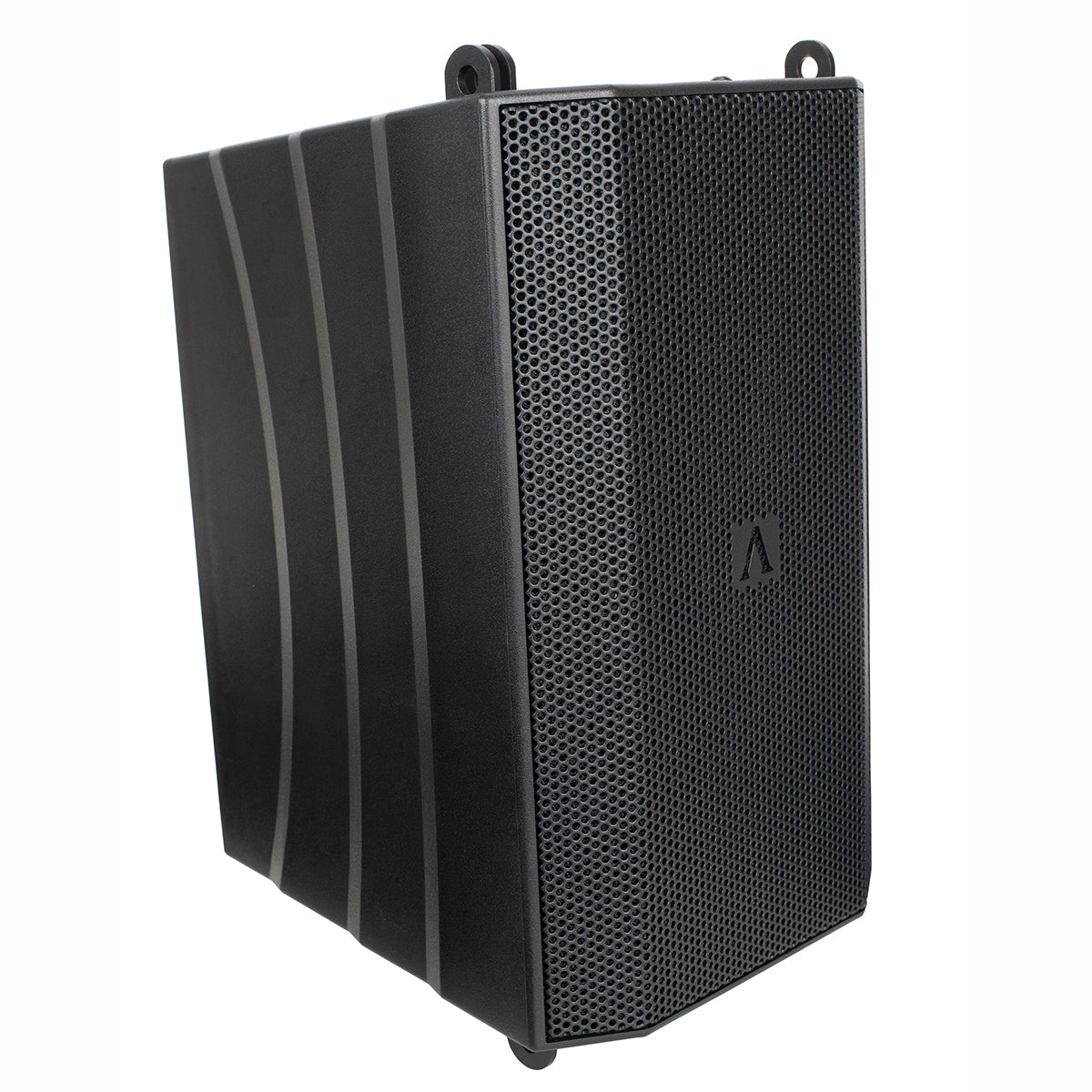

The Imperio Pro Series builds on the success of Avante Audio’s original Imperio Series. Designed for very fast deployment and versatility, the Imperio Pro IMP205 is a light-weight compact, high output active line array system fully equipped with neodymium components: Dual 5-inch Low-Mid transducers and Six 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology). Each array module of IMP205 is driven by 440W RMS (880W Peak) Class-D Power Amplifier with PFC Switching power supply.
Imperio Pro IMP205 features include: 32-bit DSP with advanced FIR digital filter technology. Controls include selectable DSP and input sensitivity. Rigging offers seven Splay Angles: 0, 2, 4, 6, 8,10, & 12-degrees. The Imperio Pro IMP205 cabinets can also be configured as a flown array with the sub on top or ground stacked on subs.

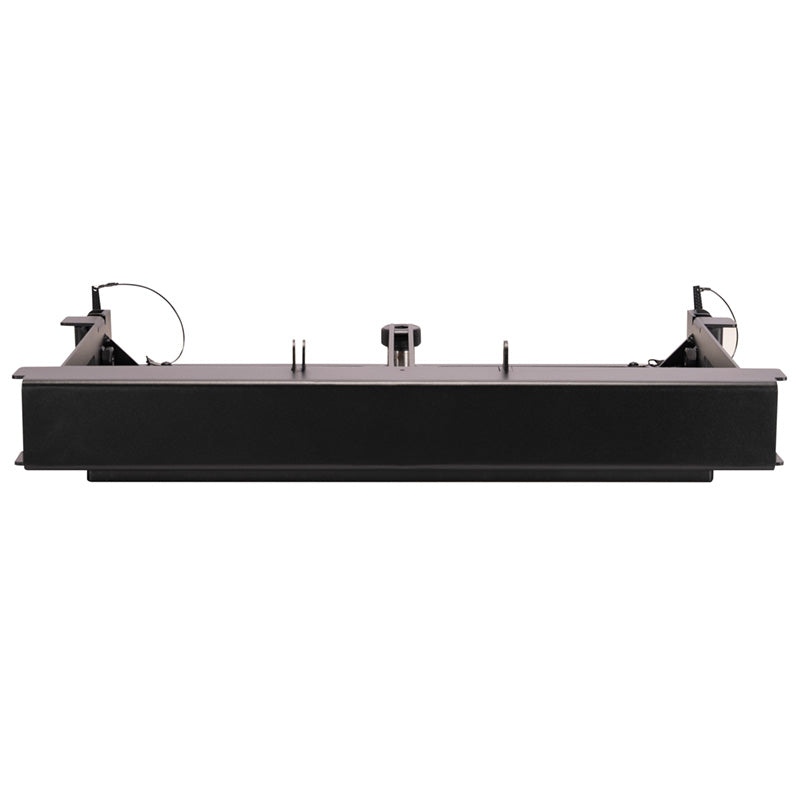

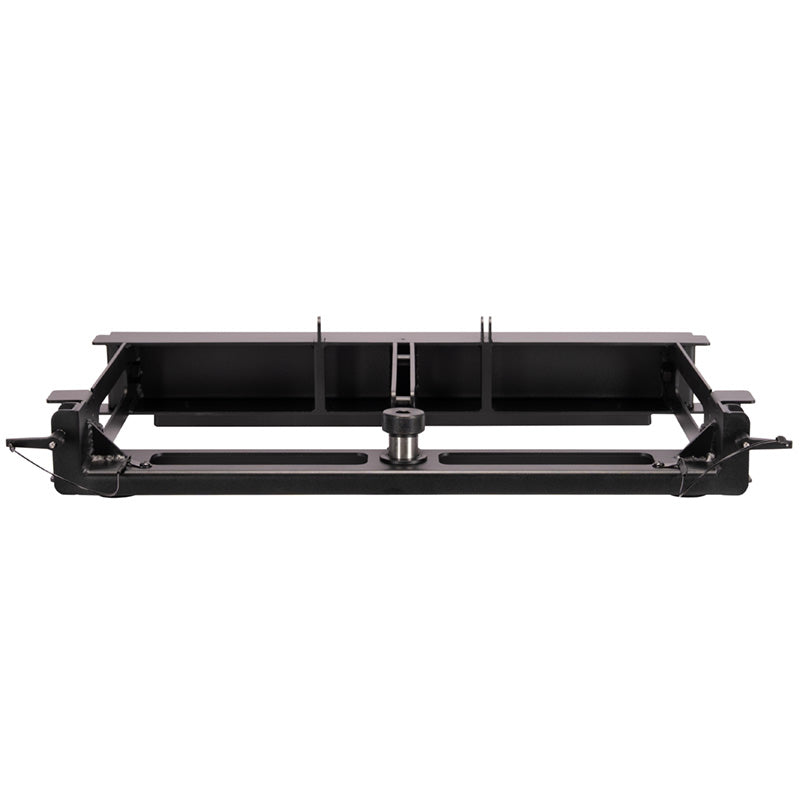

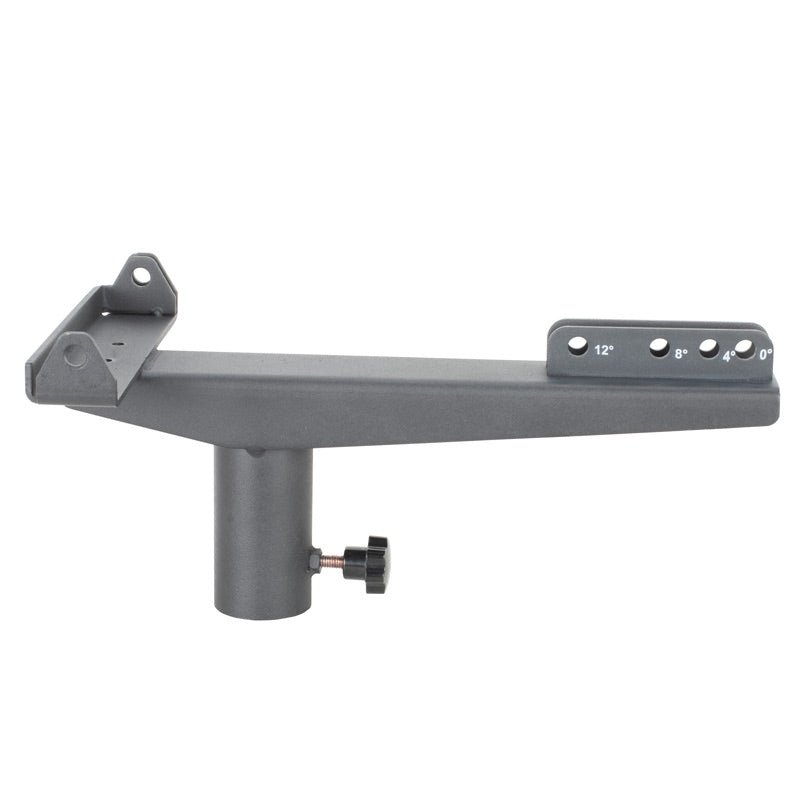

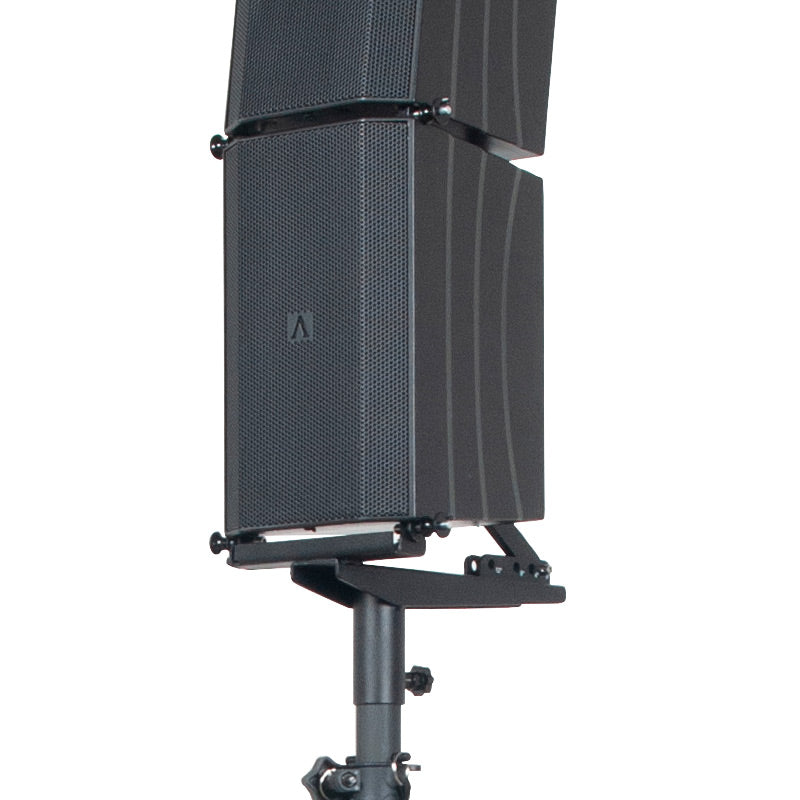

Imperio Pro accessories include: Imperio Pro IFB205 Flybar (IFB205), Imperio Pro NEW Flybar (IFB205), Imperio Flybar LG (IMP265), Imperio Pole (IMP194) and Link-pin 2 (IMP340), Imperio Pro T-Adapter (IMP224), Imperio QRC Road case (IMP670) Imperio Pro Ground Stack mount and base (IGS205).
Call Sales Rep for more information.
Specifications

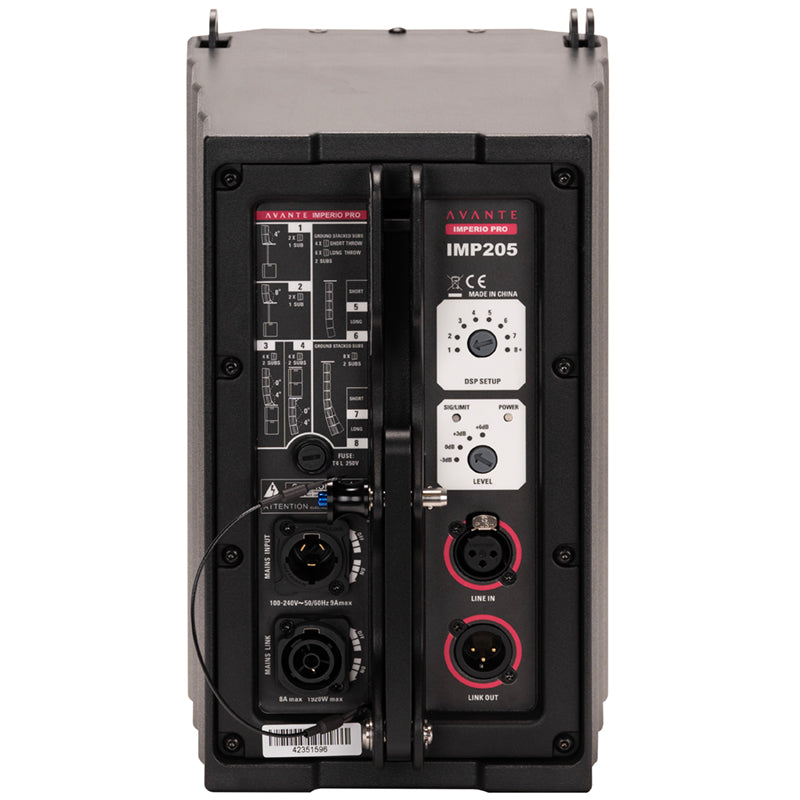

AMPLIFIER:
- 440W RMS, 1700W Peak Class D Amplifier Module
- Switching Power Design
- LED Power / Signal / Clip Indicator
- 32-bit DSP with FIR digital filters
- Selectable System Configurations
- Input: 1x XLR and IP Locking Power Connector
- Output: 1x XLR and IP Locking Power Connector
- Gain: Selectable Input Sensitivity
- Power Input: 100-240V ~ 50/60Hz
- Power Linking:
- - SUB210 @ 120V: up to 2 units
- - IMP118 @ 120V: up to 2 units
- - IMP118 @ 208: up to 4 units
SPEAKER:
- 2x 5.0" Neodymium Low-Mid transducers.
- 6x 1.75" IDVAT HF Neodymium drivers (Inverted Dome Vertical Array Technology)
- Type: 2-Way Active Closed Design
- Frequency Response: 100Hz – 20KHz
- Max Output SPL: 128dB (single box measured on Axis @1m)
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
- Cabinet: ABS Plastic
- Grille: Powder coated Steel

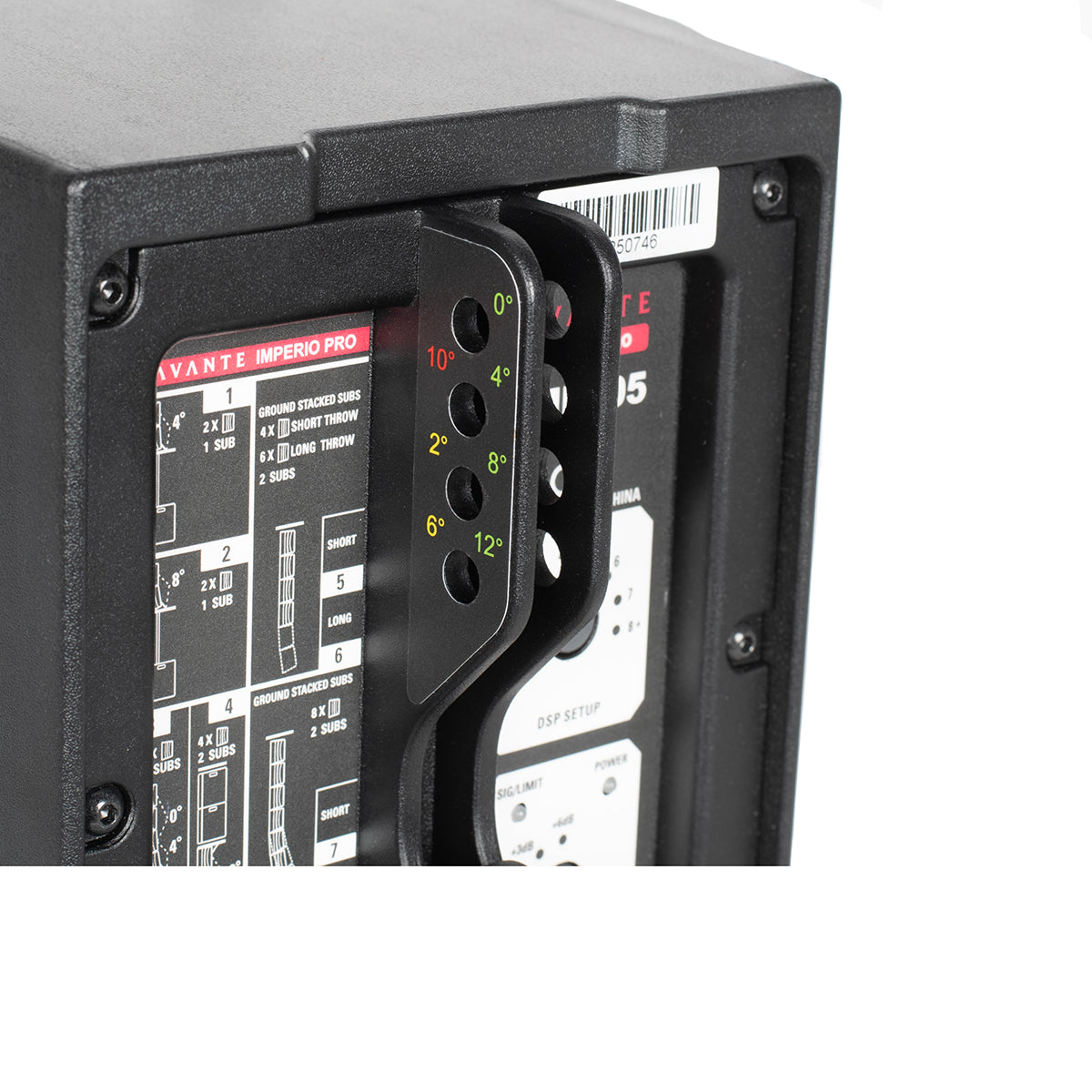

- Splay Angles: 0, 2, 4, 6, 8,10, 12-degrees
- Integrated Rigging: Yes
- Horizontal Dispersion Angle: 100⁰
- Power Linking:
- 120V, low demand (e.g. talking heads): up to 8 units
- 120V, high demand(e.g. rock, EDM) up to 4 units
- 208V, low demand: up to 16 units
- 208V, high demand: up to 8 units
- Dimensions (LxWxH) 8.8” x 7.3” x 12.8” / 224mm x 185mm x 324mm
- Weight: 12.5 lbs. / 5.6 kg.
INCLUDED ITEMS:
- (1) IMP205 line-source speaker
- (1) IP Locking power link cable
- (1) Link-pin set
- (1) XLR link cable
- (1) User Manual
Main power cord not included.
Downloads
| Filename | Document type | File type |
|---|---|---|
| Imperio Pro IMP205 - GLL File | Other | GLL |
| Imperio Pro - 2D CAD Drawing | CAD Drawing | DWG |
| Avante Imperio Pro - User Manual | User Manual | |
| Imperio Pro IMP205 Cut Sheet | Other | |
| imperio Pro - Frequency Charts | Other | |
| Imperio Pro - Dimensional Drawing | Dimensional Drawings |
Imperio Pro IMP205 Parts & Service
Our Imperio Pro IMP205 Parts and Support page is your hub for technical support for your product. Here you’ll find replacement parts specifically matched to your Imperio Pro IMP205. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
Imperio Pro IMP205 Parts
