ATS218


The Avante Audio AKRO Series ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante Audio AKRO ATL328 line array.

UPC: 810087374280SKU: ATS218

ATS218

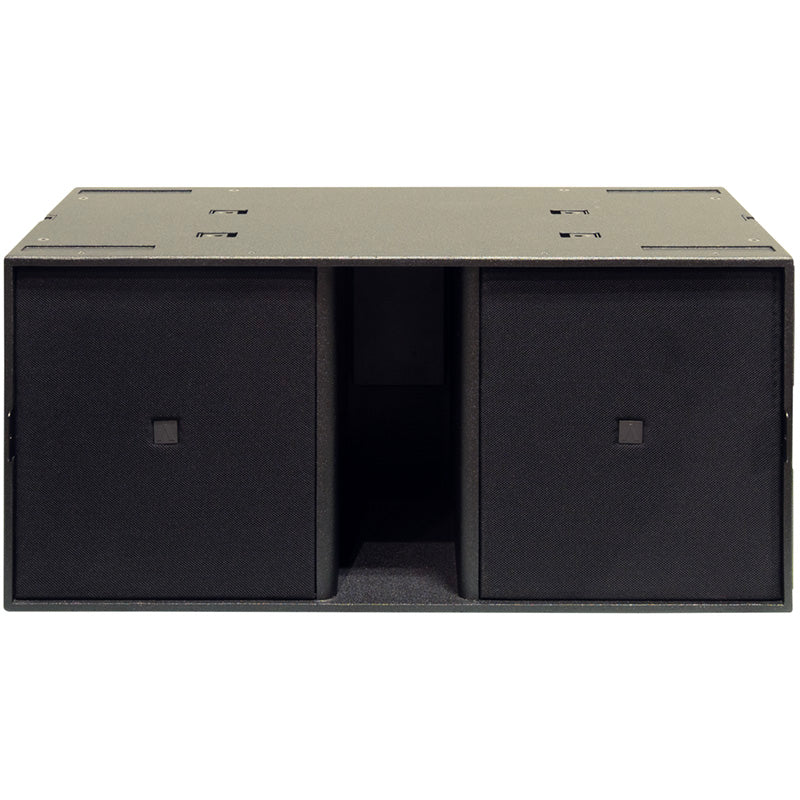

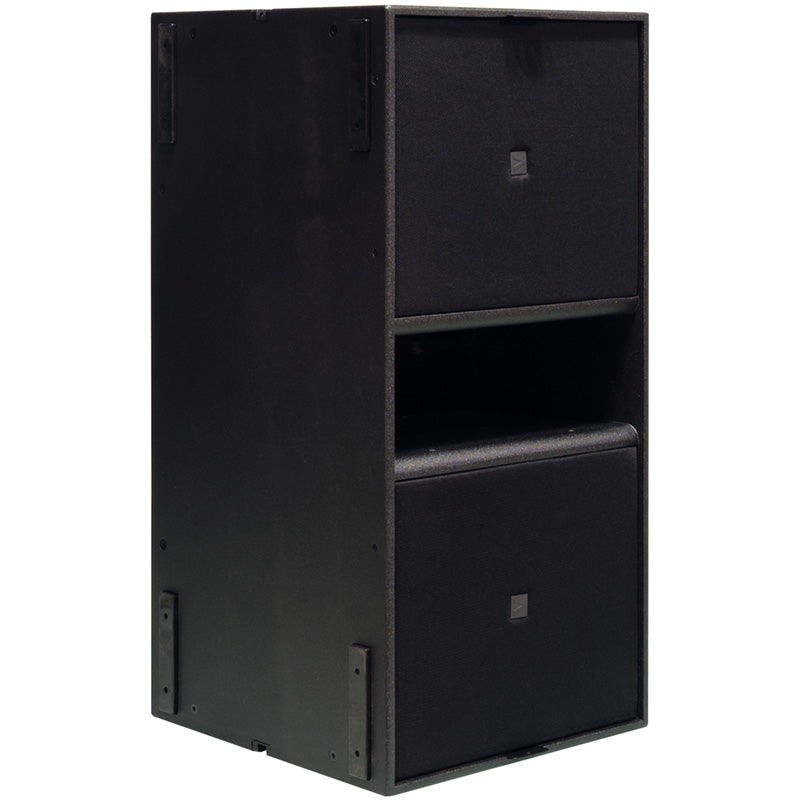

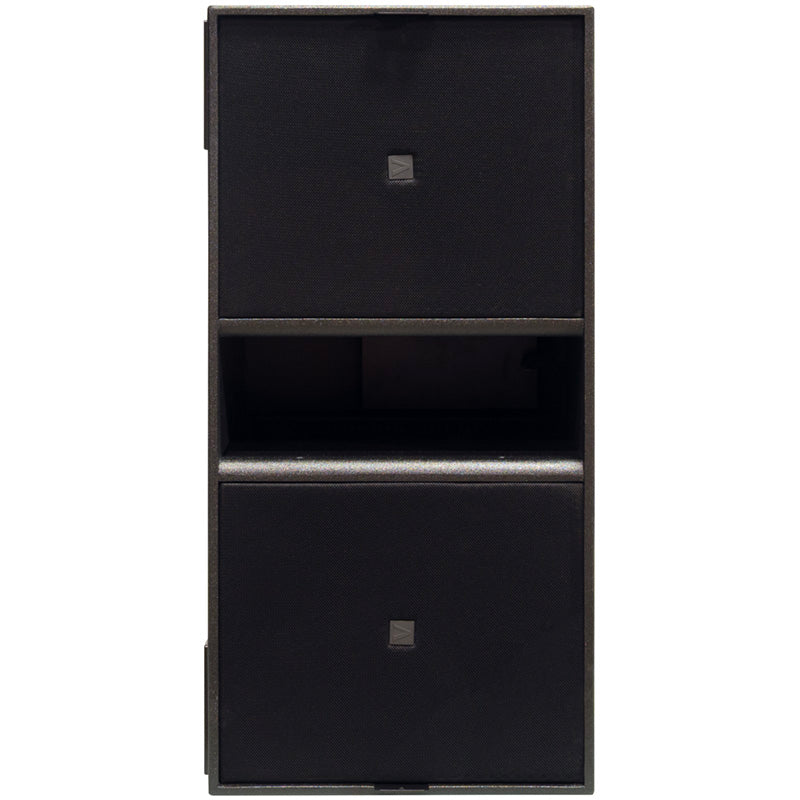

Designed in the USA, the Milan™ certified Avante Audio AKRO ATS218 is a high-output dual 18-inch active subwoofer engineered for medium to the largest events and pairs nicely with the Avante Audio AKRO ATL328 line array. This subwoofer can be setup to form small to large sub arrays depending on venue or application. This subwoofer is composed of dual high-output 18-inch low-frequency woofers tuned with a very large port. The high-efficiency Class-D +switching power amplifier boasts 4800-watts of total peak power and has a PFC power supply. This ensures that you have great headroom with very minimal distortion. Delivers an exceptional low frequency response of 32 Hz to 120Hz (-6dB).
The AKRO ATS218 is equipped with a comprehensive, German made DSP, featuring full system networking, remote monitoring/control including input level, equalization, delay, LF and HF compensation presets. It can be controlled via the new Akro-Command system control software (Windows/Mac), or locally via three rotary switches.
This DSP also enables networked audio using the Milan™ standard. This allows for easy setup via TCP/IP. Analog audio connections are available as well.

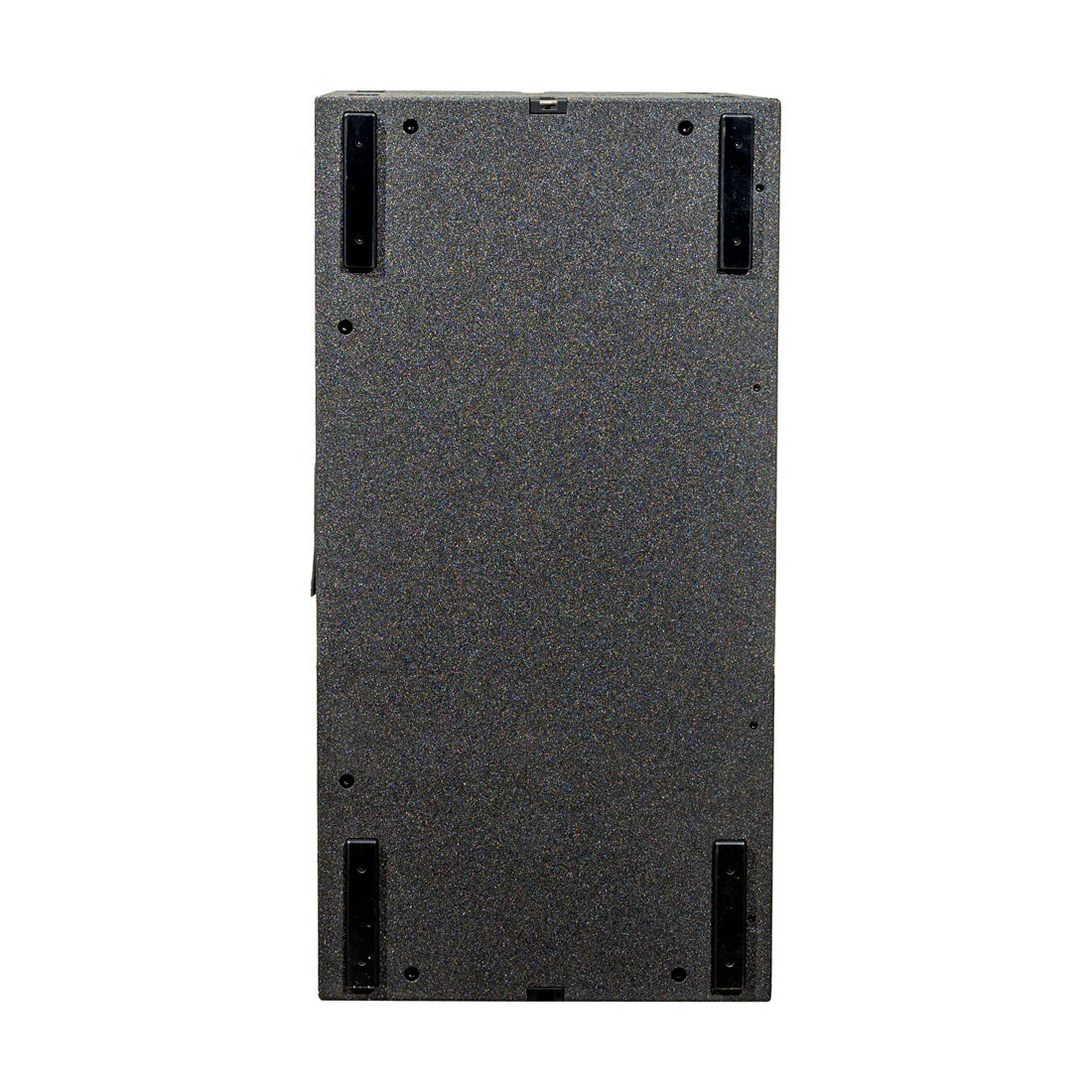

With a precision CNC machined Baltic birch plywood enclosure, made to withstand the rigors of touring in very demanding environments, making it the perfect choice for professional sound applications including live-sound production, touring and permanent installation including night club applications. The EZ-Link cabinet interlock hardware makes it easy to connect cabinets together to form solid arrays. Protective rain cover for the amplifier connections and IP-rated locking power connectors comes standard. Heavy duty interlocking nylon-skid feet make it easy for cardioid configurations.
Finished in a durable black polyurea coating and featuring a black powder-coated steel grill, this line array system is sure to look great with any performance. Individually, it outputs an impressive maximum SPL of 142 dB.
The new AKRO ATS218 dual 18-inch subwoofer is the perfect choice for any audio professional looking to create a big impact and bringing your event to the next level!

Specifications

TECHNICAL DATA:
• Speaker Type: 1-Way Active Dual 18-inch Subwoofer, Milan™ certified

ACOUSTICAL DATA:
• Frequency Response: 35 -200 Hz
• Peak SPL: 142 dB
• LF: 2 x 18” (4” voice coil)

AMPLIFIER:
• Amplifier: Class-D 2400-Watts RMS / 4800-Watts Peak
• Cooling: Internal fan
• Power Supply: Auto switching (PFC)100V-240V, 50-60Hz
• Protection: Thermal, DC Offset, Output Short

PROCESSOR:
• German made Proprietary DSP, Milan™ Certified
• Sample Rate: 96 kHz
• Limiter: Multiband compressor, Peak Limiter
• Processing (filters): Linear Minimum-Phase FIR

INPUT:

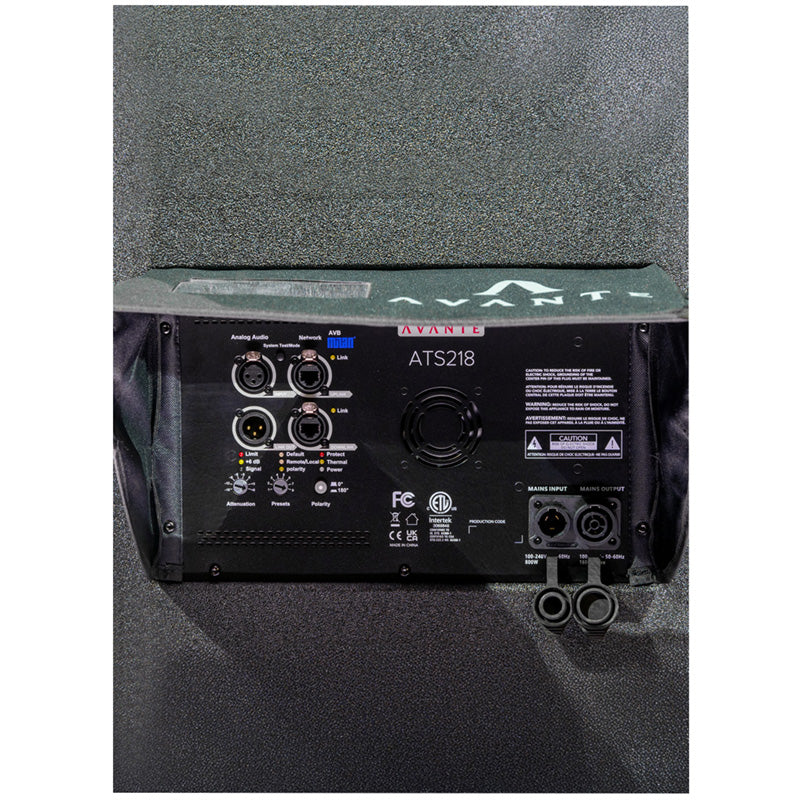

• Signal In/Out (analog): 3-pin XLR, (digital) locking RJ-45
• Power Socket: IP65 Locking Power In/Out
• Network: Locking RJ45 In/Out for control and Milan™ network
• Controls: Input Attenuation (-15dB - +6dB); System presets (8 selectable),  System Test/Reset Button
• Special Features: Front LED wink-ID

Remote Control:
Full system control and monitoring with AKRO-Command system software. MAC and Windows PC compatible.

CONSTRUCTION:
• Cabinet: Baltic birch premium plywood
• Finish: Durable black Polyurea coating, powder coated     galvanized grille, Nylon-skid interlocking feet.

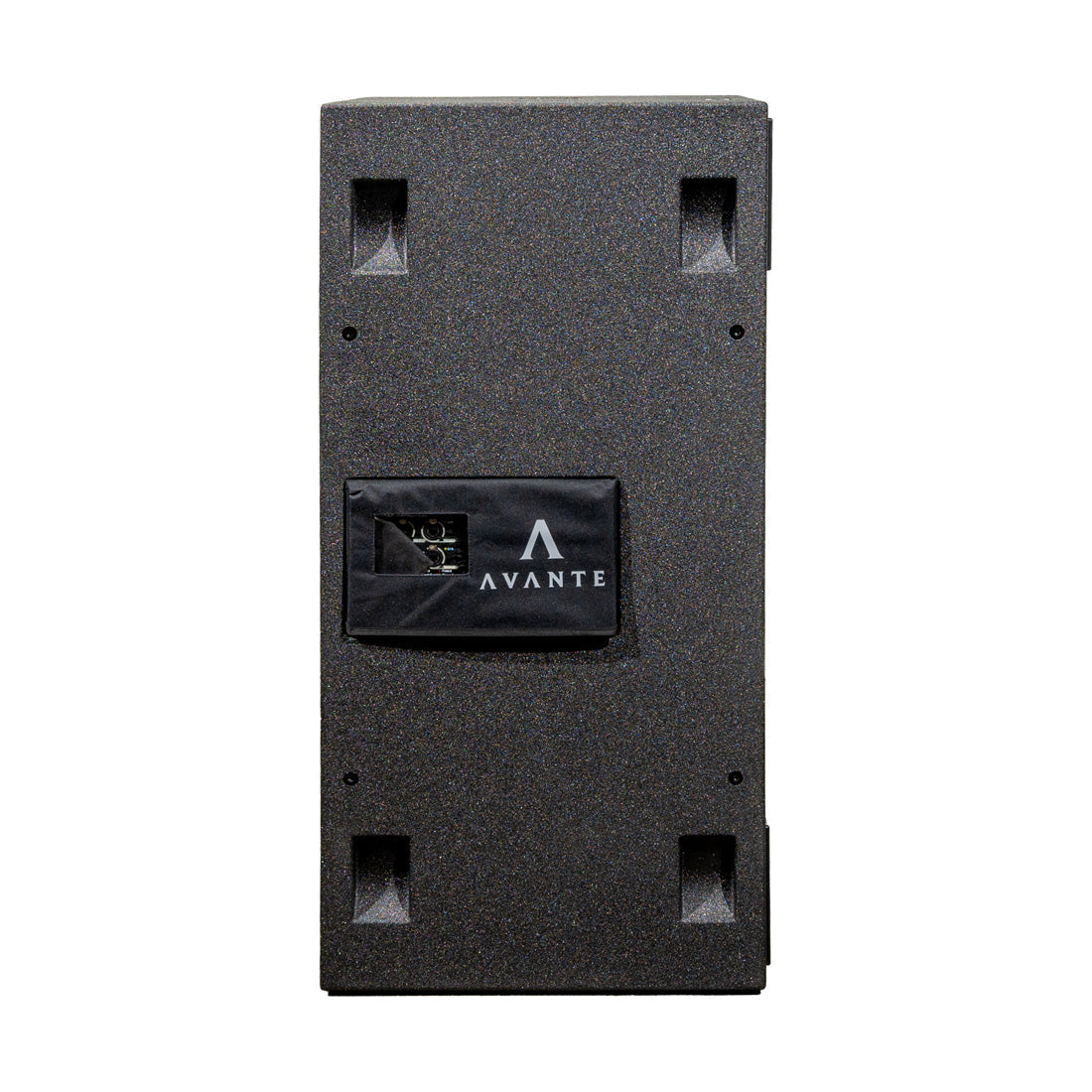

• Handles: 4 integral handles (2 on each side)

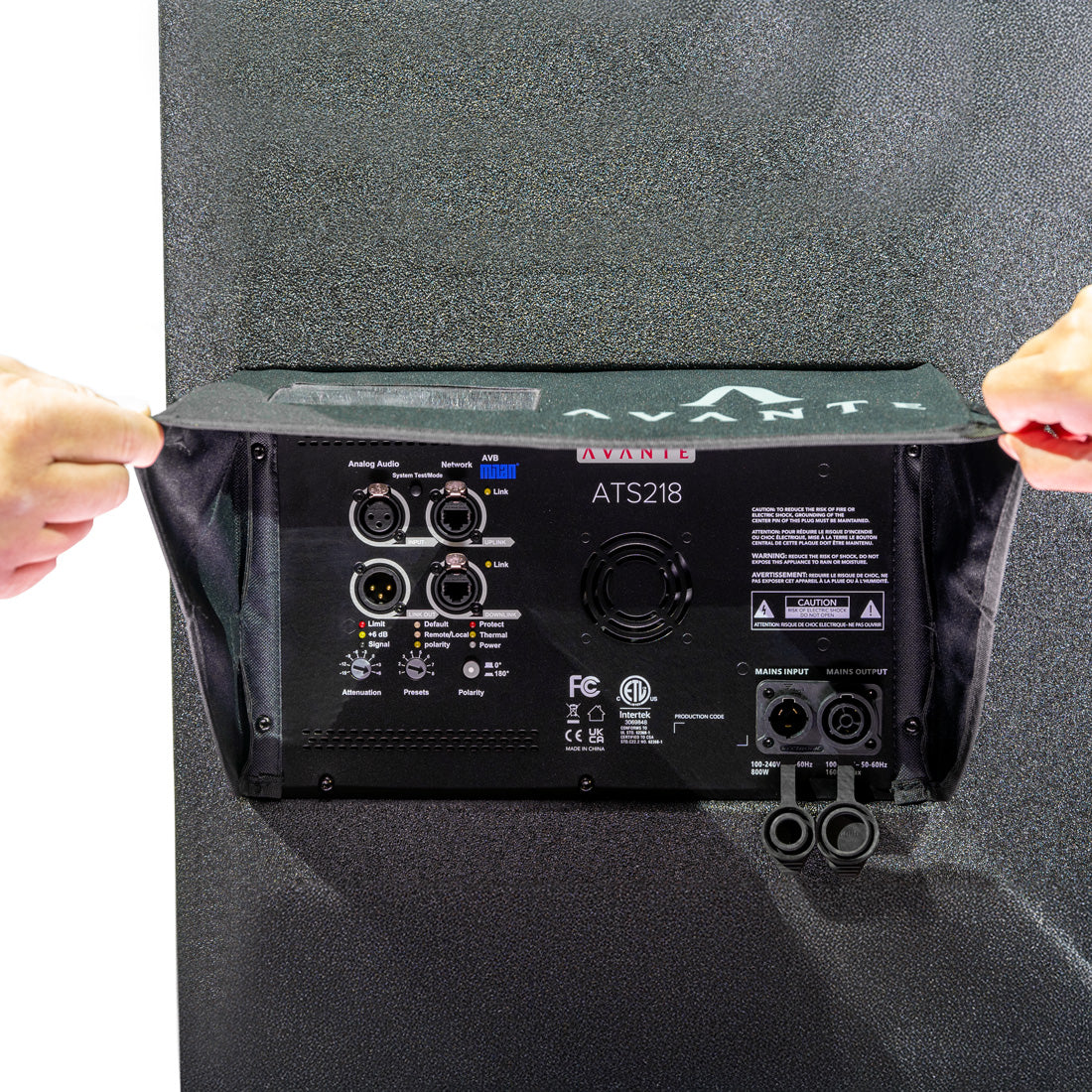

• Amplifier Protection- Rain resistant cover included
• Rigging:(20) M10 points, (4) EZ-Link cabinet interlock hardware
• Dimensions (LxWxH): 48"x22.6"x22.6" / 1219x575x575mm
• Weight: 174 lbs. / 79 kg.

ACCESSORIES:

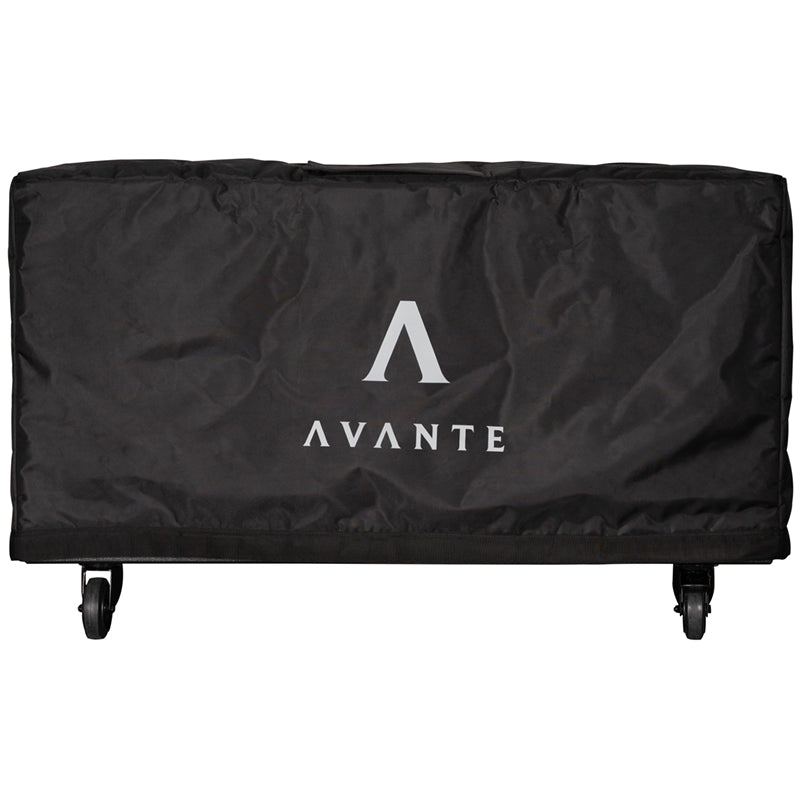

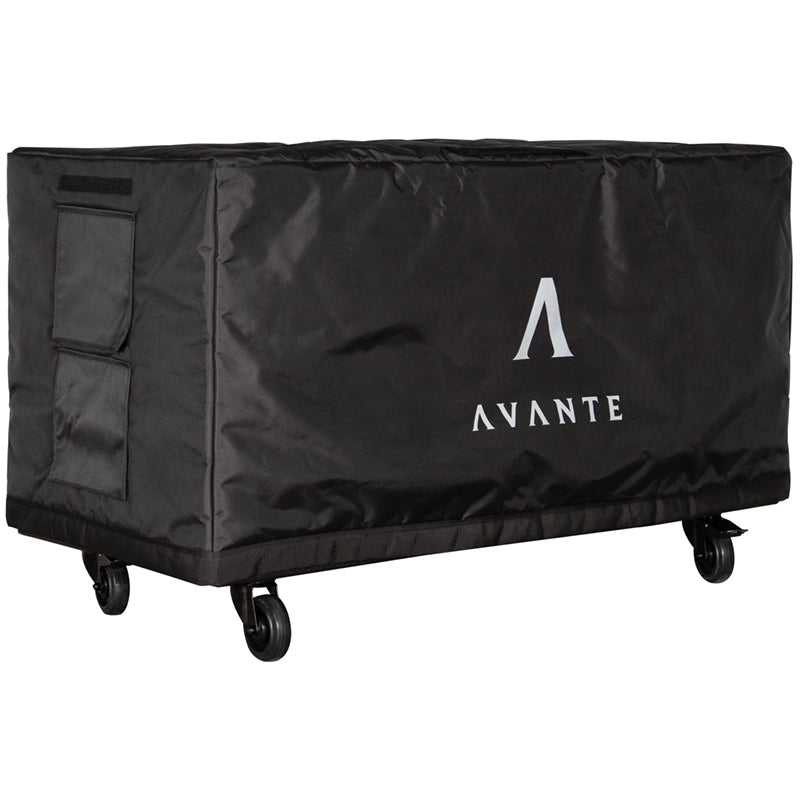

• CVR218 Protective cover for one ATS218

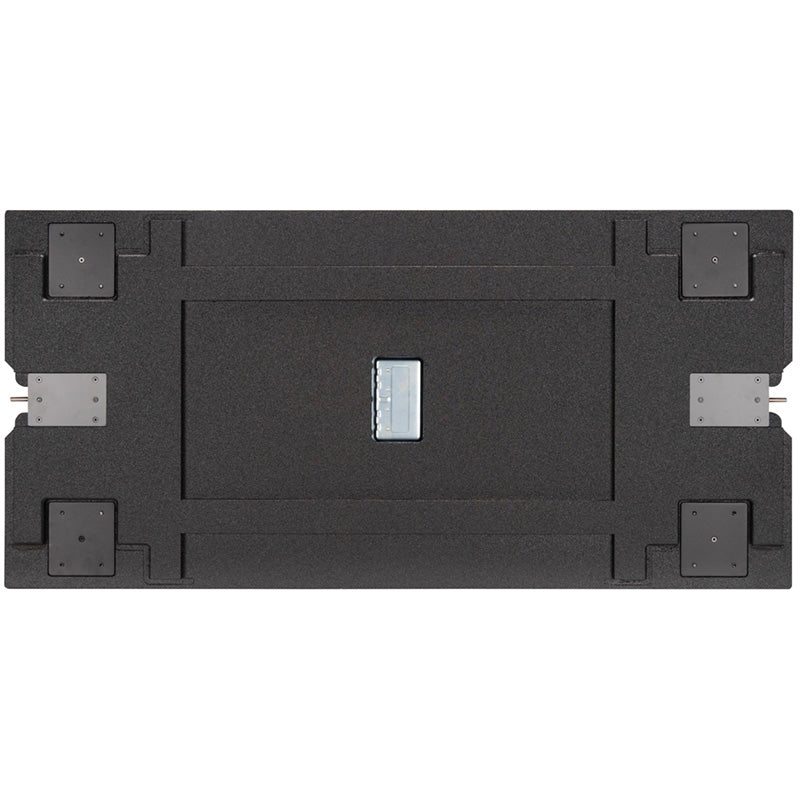

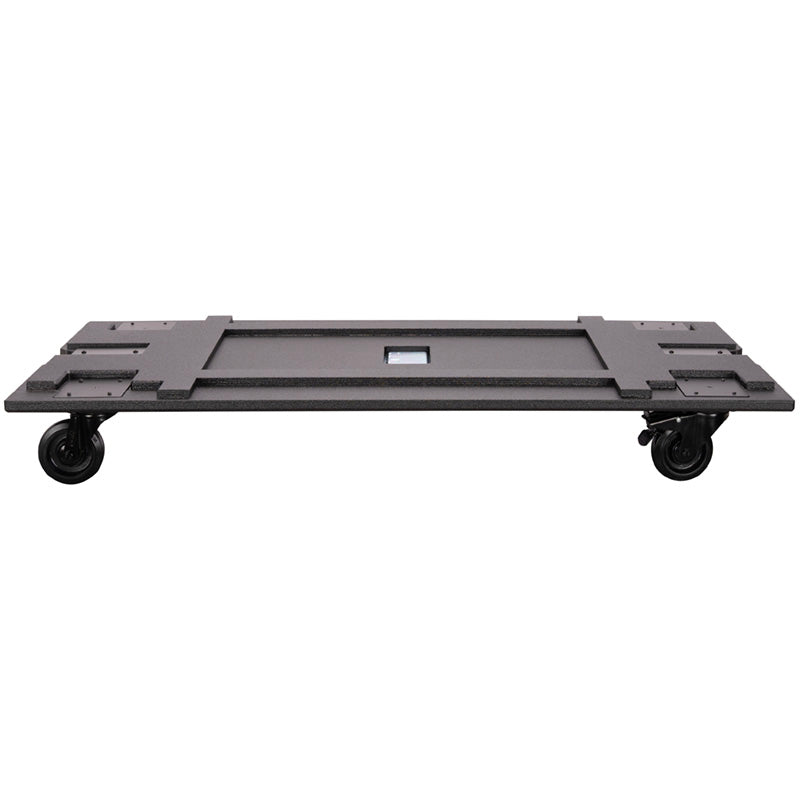

• ADB218 Transport 2-way Dolly Board for up to two ATS218

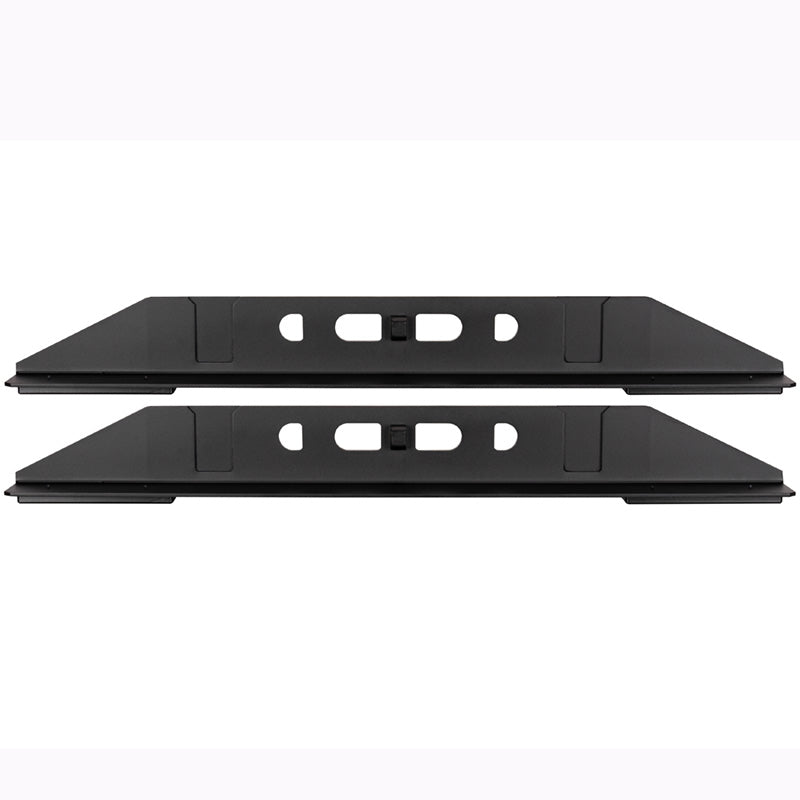

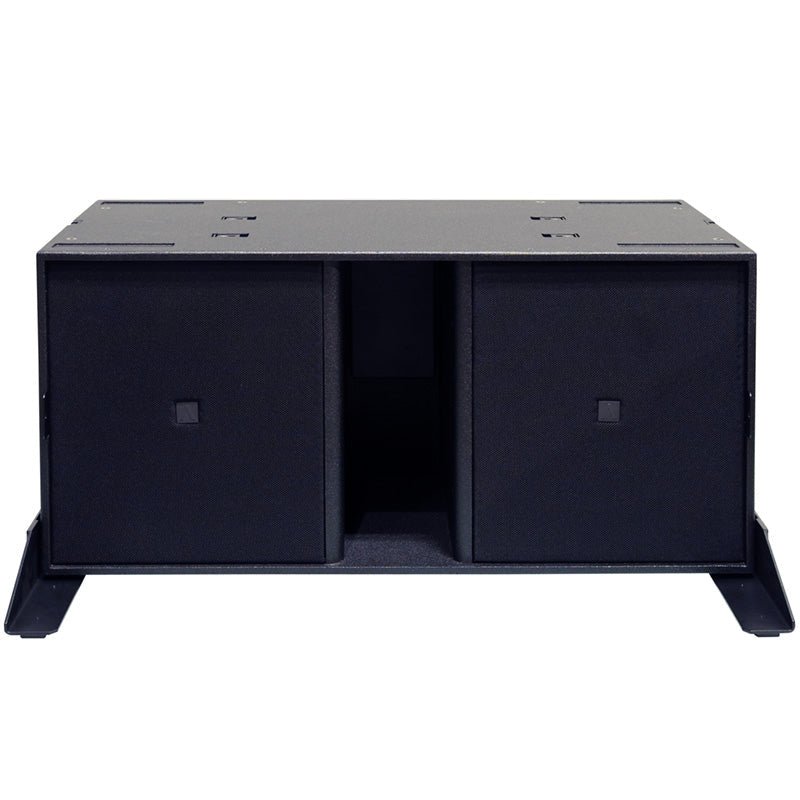

• ASB218 Stabilizer Bars for ATS218 (2-piece set)
